LINKED PANEL FILTER
MERV 8
LINKED PANEL FILTER
MERV 8
Series 153 (MERV 8) is a two-ply 100% 6/15 denier graduated density polyester media with a dry tackifier on the

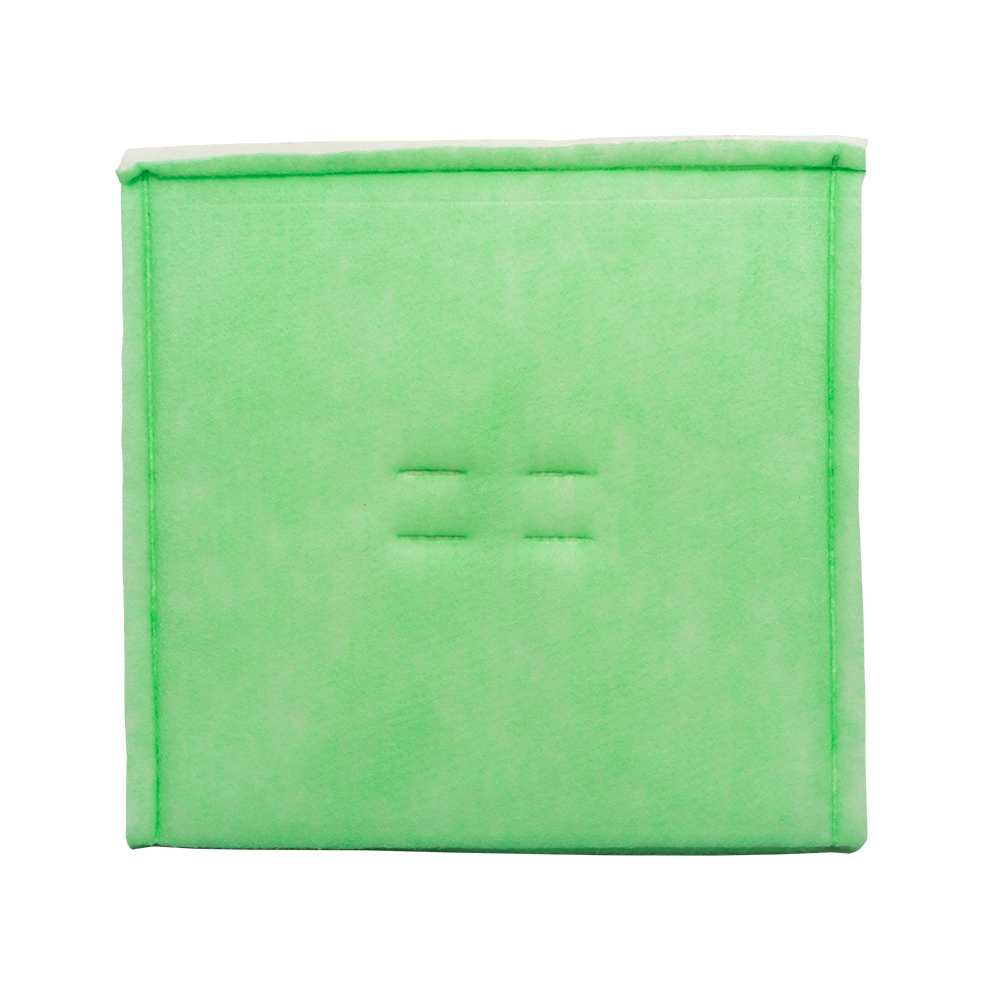

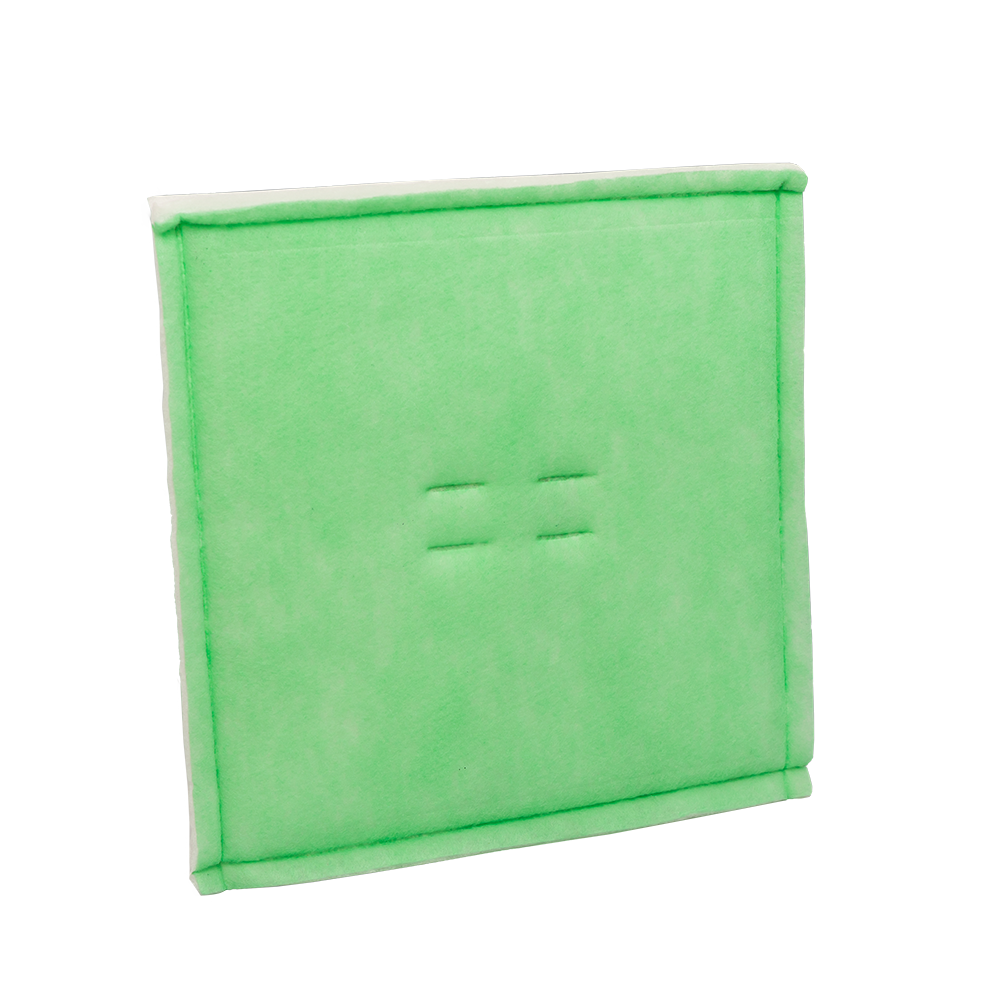

Series 153 (MERV 8) is a two-ply 100% 6/15 denier graduated density polyester media with a dry tackifier on the downstream side. It is designed to replace pleated and/or fiberglass throwaway filters. Triple the service life without triple the cost.

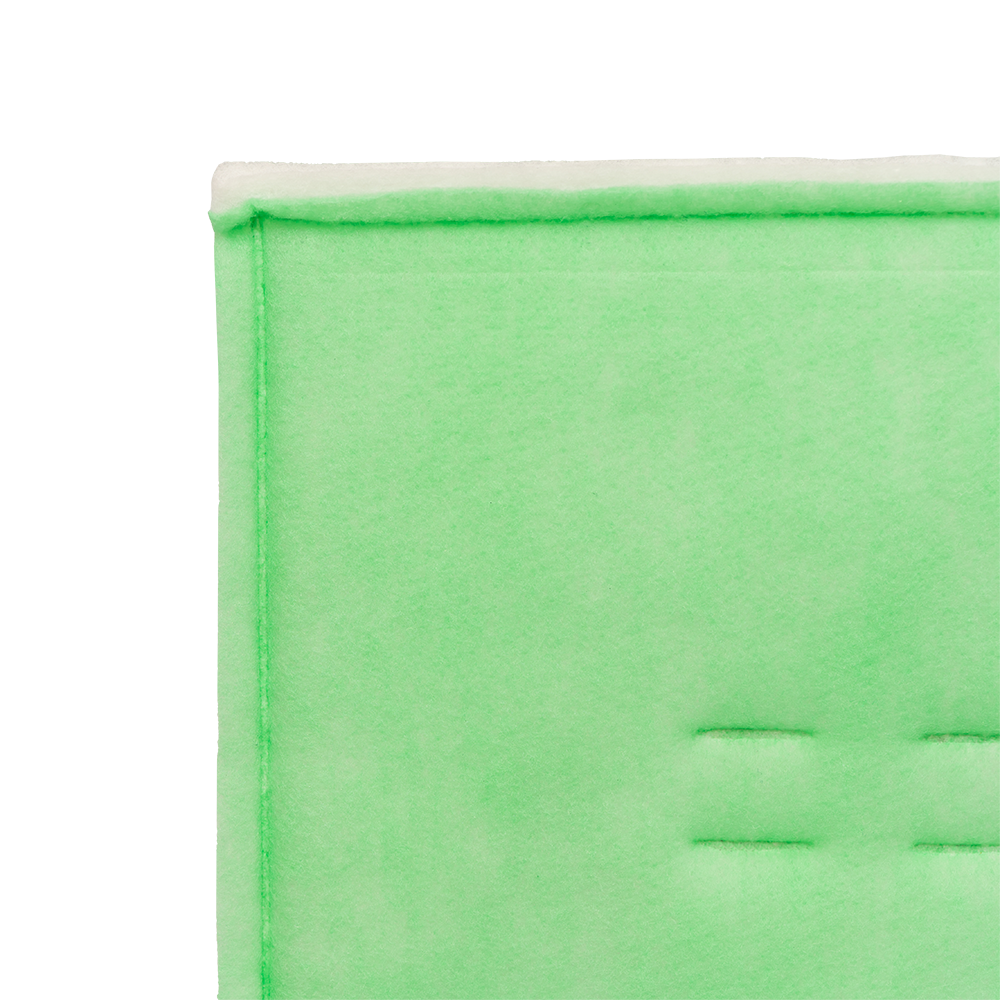

The open weave on the air entering side traps larger particles, while the tight weave on the air exiting side captures smaller particles. The media heat sealed around the 9 gauge wire frame creates a self-sealing gasket, which dramatically increases efficiency.
It takes up 50% less space compared to standard cardboard framed filters, saving money and lessening trips by maintenance personnel to air handler.
Available in panel and link form. Link form designed for slide-in systems to ease both installation and changeout.
Unaffected by humidity, moisture and most corrosive chemicals
