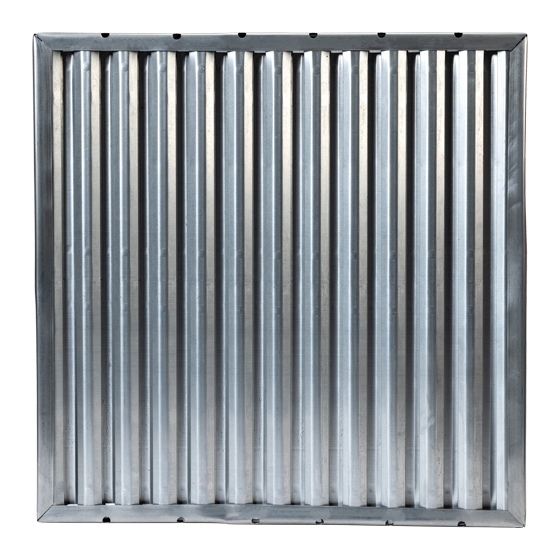

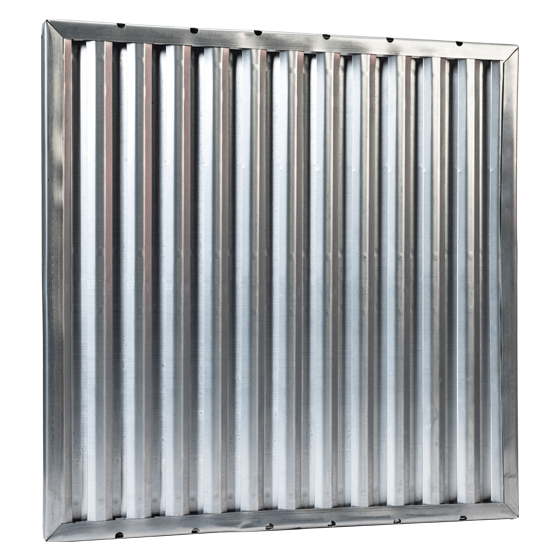

The Thrifty Flame Stop in a 1” Baffle Filter. Available in Galvanized Steel, 430 Stainless Steel, and Aluminum, this metal baffle filter is designed to be used in grease hoods that accommodate a one-inch baffle filter.

The two layers of vertical baffles are designed to drain grease into the collecting trough below as well as eliminate flame penetration into the exhaust ducts.

• Aluminum: Made from heavy commerical aluminum. Maximum temperature is 250° F.
• Galvanized Steel: Made from Hot Dip Galvanized Steel. Maximum temperature is 450° F.
• Stainless Steel: Made from 430 Stainless Steel. Maximum temperature is 700° F.

Available in both stock and special sizes.

Grease drains down the baffles into a trough, where it can be easily wiped away

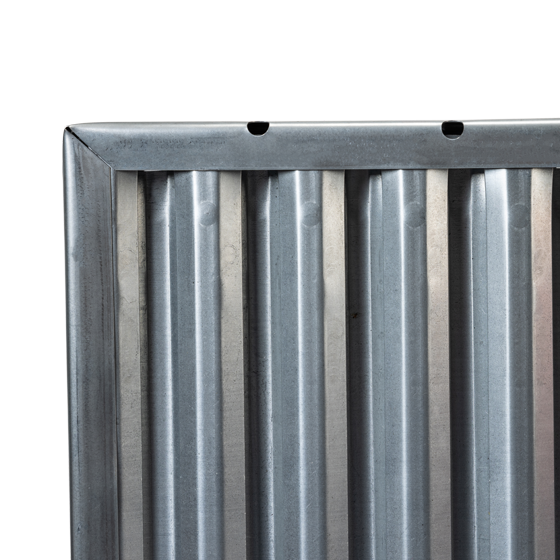

Support strips hold each baffle at precise distances from one another, allowing the proper distance between each baffle as well as giving the Fire Patrol the stability this type of filter requires

Each baffle “pad” is supported by a solid metal frame, securely riveted on one side
